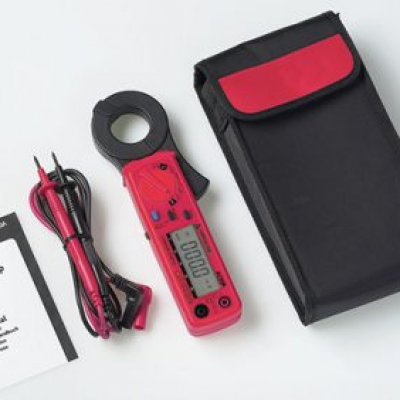

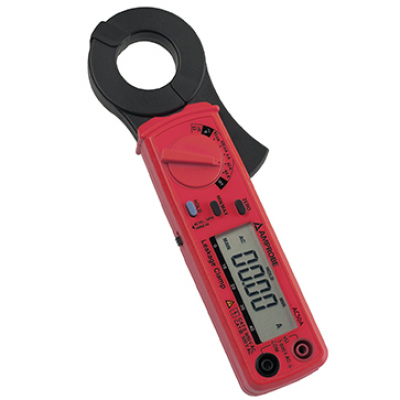

Xtester-Amprobe AC50A AC Leakage Clamp Meter,COMPACT CLAMP METER FOR LEAKAGE CURRENT
Key Features
|
Description

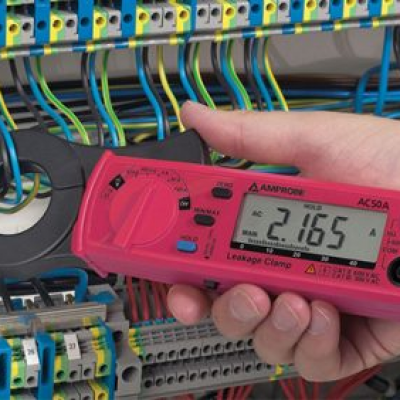

The Amprobe AC50A Clamp Multimeter with leakage current capability measures low AC current in the microamps. Great for applications requiring measurement of leakage and fault currents. |
Specifications
| FEATURE | AC50A |
| AC Voltage | 400.0 V |
| AC Current | 40.00 mA, 400.0 mA, 4.000 A, 40.00 A, 60.0 A |
| DC Current | – |
| Resistance | 400 O |
| Continuity | • |
| Accommodates conductors | up to 1.2 (30 mm) in diameter |
| Specifications | |
| Display | 3-3/4, LCD incl. functions and symbols |
| Bargraph | 40 segments |
| Range selection | manual |
| Auto-power off | approx. 30 min. |
| Overload display | the left digit is blinking |
| Measuring rate | 20 measurements/sec. (Bargraph), 2 measurements/sec. (LCD) |
| Clamp opening | 1.2″ (30 mm) |
| Overvoltage category | CAT II 600 V, CAT III 300 V |
| Pollution degree | 2 |
| Height above MSL | up to 2000 m, indoor operation |
| Battery display | at low battery |
| Power supply | Battery 2 x 1,5 V IEC LR6 (alkaline) |
| Current consumption | approx. 10 mA |
| Operation temperature | -10 °C … 50 °C (14 ° F… 122 °F) |
| Storage temperature | -20 °C … 60 °C (-4 ° F… 140 °F) |
| Humidity | < 75 % relative humidity |
