Xtester-EC1203 series-Center distance digital caliper

Xtester-EC1203 series-Center distance digital caliper

2023-07-20 10:03:04

Xtester-EC1203 series-Center distance digital caliper

Main Features :
Serial No. : monica0099

Specification

Contact Us for Quotation

Email: mewoi008@mewoi.com

Whatsapp:+8619928420370

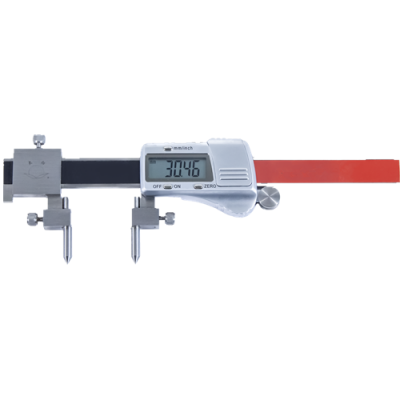

Xtester-EC1203 series-Center distance digital caliper

Introduction

·The conical points can be adjusted up or down to measure the center distance between two hole on different height. ·Made of stainless steel. ·Functions of prompt transference of the system between metric and inch. ·All Measuring faces are treated through hardening and tuning process. ·Auto power on/off.

Specification

Range	Order No.	Resolution	Accuracy
5-150mm/6"	EC1203-150	0.01mm/0.0005"	±0.08mm/0.003"
5-200mm/8"	EC1203-200	0.01mmm/0.0005"	±0.10mm/0.004"
5-300mm/12"	EC1203-300	0.01mmm/0.0005"	±0.15mm/0.0045"

Lable: Center distance digital caliper
