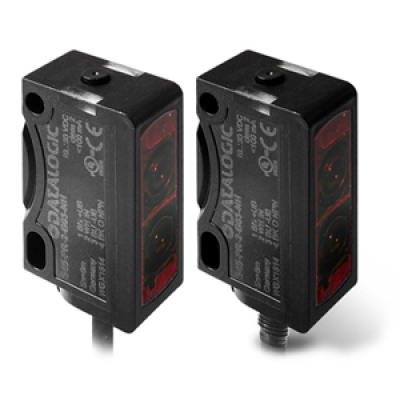

Xtester-Datalogic Photo Electric Sensor 950411180 S45-PR-5-T53-PH 10-30V DC,High performance European style miniature sensor all-in-one family
Overview
|
Technical Features
Detection properties
| Nominal sensing distance | 2m |
| Sensitivity adjustment | Teach-in |
Application
| Function Principle | Polarized retroreflective for clear object |
| Description | Miniature european style rear holes |
| Optic position | Radial 90° |
| Functions | Polarized retroreflective for clear object |
Outputs
| Output type | PNPL/D selectable |
| Output Function | L/D selectable |
| Response time | 0,5 |
Electrical data
| Operating Voltage | 10…30VDC |
| No-Load supply current | ≤ 30mA |
| Load current | ≤100mA |
| Output voltage drop | ≤2V@Iload=100mA |
| LED indicators | Green (PowerON) Yellow (status output) |
| Short-circuit protection | YES |
| Reverse Polarity Protection | Yes |
| Emission | LED Red (632 nm) |
| Interference to external light | according to EN 60947-5-2 : 2020 |
| Impulsive Overvoltage Protection | Yes |
| Insulation resistance | >20 MΩ 500 Vdc, between electronics and housing |
| Contact resistance | 500 Vac 1 min., between electronics and housing |
Mechanical data
| Dimensions | 12x34x20 |
| Housing Material | ABS(Housing), PMMA (Optics) |
| Connections | M8 plug 4pin |
| Active Head Material | PMMA |
| Storage temperature | - 25°C…+70°C |
| Material | Plastic ABS / PMMA |
| Diameter/Dimension | cubic |
Test/Approvals
| Approvals | CEcULus |
| Shocks and vibrations | 0.5 mm amplitude, 10 … 55 Hz frequency, for every axis (EN60068-2-6) |
Generical Data
| Dimensions | 12x34x20 |
| Operating Temperature | - 25°C…+ 55°C (Without freeze) |
| Mechanical Protection | IP67 & IP69K |
