Musktool-E310 Good Price High-Resolution 256-192 Thermal Imager Handheld Industrial Temperature Tester Camera

  • Main Features :
  • Serial No. : monica0836
Contact Us For QuotationEmail:  464560351@qq.comWhatsapp&Wechat:+8618620373879

Musktool-E310 Good Price High-Resolution 256-192 Thermal Imager Handheld Industrial Temperature Tester Camera

Product descriptions from the supplier

Products Description

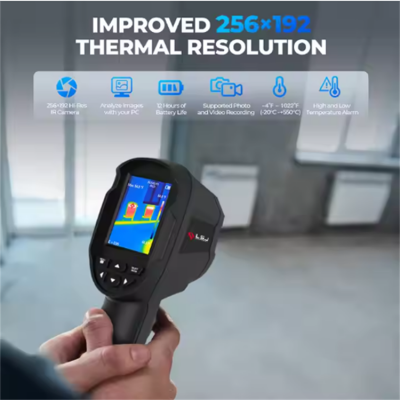

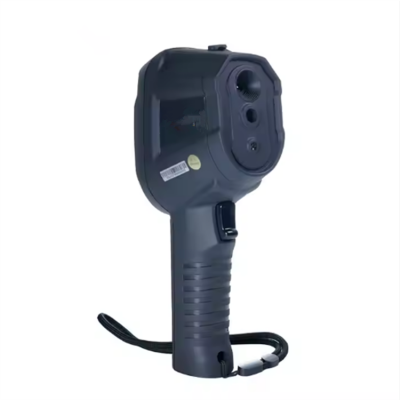

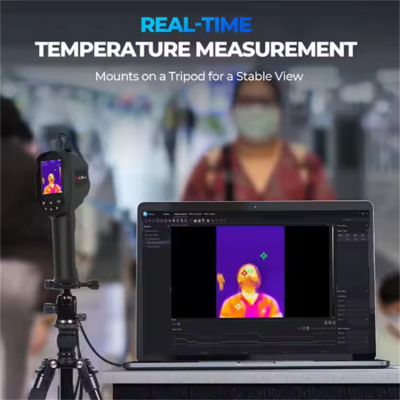

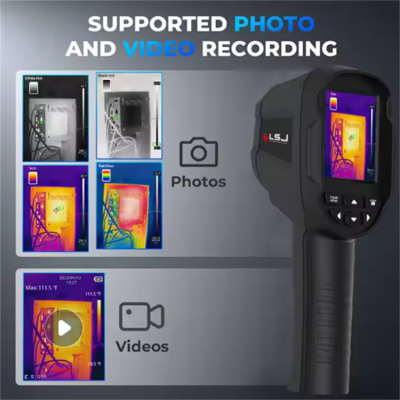

E310 is a handheld thermal imager with an infrared detector resolution of 256x192 2.8-inch full-view TFT screen. The instrument uses a new ergonomic design concept, a frame rate of 25Hz, The product has WIFI function, which can be viewed in the background through WIFI, and the thermal camera can realize the hot spot automatic tracking. It has important applications in many fields such as medical treatment, fire protection, archaeology, transportation, agriculture and geology.

Product Paramenters

ModeLSJ-E310
Displayscreen2.8"full angle TFT displayscreen
Infraredimage resolution256×192
LCD resolution640×480
Field angle/focus length56°×42°/3.2mm
IFOV3.75mrad
Pixelspacing12μm
Frame rate25Hz
Focusing modeManualfocus
NETD≤50mK@25℃F#1.0
Wavelengthcoverage8~14μm
EmissivityAdjustablefrom 0.01 to 1.0
ColorpaletteRainbow,iron oxide red,cold color,white hot,black hot
WIFISupport
Measuring range-20℃~550℃(-4°F~1022°F)
Accuracy±3%
SettingUnit、Language、Date、Time、Information
LanguageChinese、English、German、Italian
Storage capacityBuilt-in 4G eMMC
File formatJPG
PowerinterfaceMicro USB 2.0
Specifications
BatterytypeBuilt-in 26650 battery
Work temperature-10℃~50℃
Storage temperature-20℃~60℃
Relative humidity<85 %RH
Batterycapacity2000mAh
Workingtime3 hours
Size226×72×96mm
Weight375g
