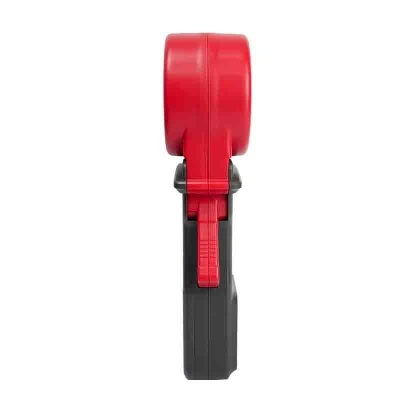

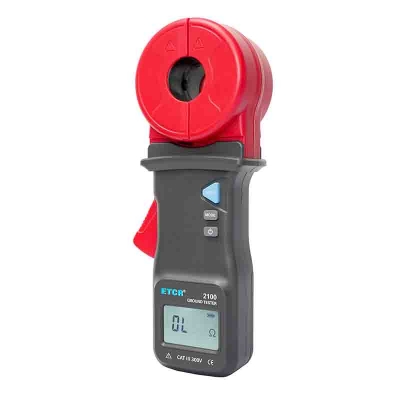

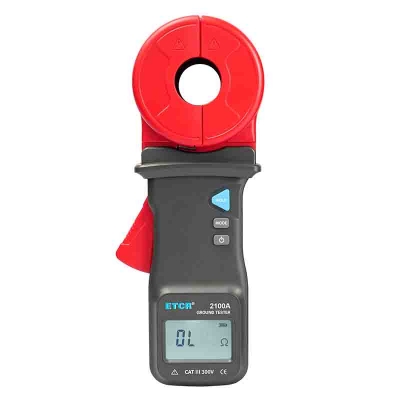

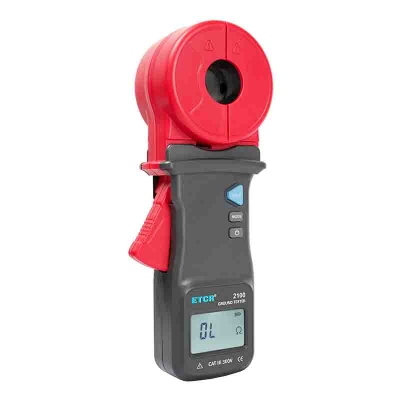

Musktool-ETCR EM2100A+ Clamp Earth Resistance Tester

2025-12-30 08:36:31

ETCR, EM2100 ,Clamp Earth ,Resistance Tester

Main Features : Musktool-ETCR EM2100 Clamp Earth Resistance Tester
Serial No. : Owen0492

Specification

Musktool-ETCR EM2100A+ Clamp Earth Resistance Tester

Email: 464560351@qq.com

Whatsapp&Wechat:+8618620373879

Product Introduction

The ETCR2100 clamp-on grounding resistance tester represents a significant breakthrough in traditional grounding resistance measurement technology and is widely used in the measurement of grounding resistance for power, telecommunications, meteorology, oil fields, construction, and industrial electrical equipment. When measuring a grounding system with a loop, the ETCR series of clamp-on grounding resistance testers do not require disconnecting the grounding down-lead or using an auxiliary grounding electrode, which is safe, fast, and easy to use.

The ETCR2100 clamp-on grounding resistance tester can measure grounding faults that cannot be measured by traditional methods and can be applied in situations where traditional methods are ineffective. This is because the ETCR series of clamp-on grounding resistance testers measure the combined value of the grounding electrode resistance and the grounding lead resistance. In addition, the C-type clamp-on grounding resistance tester can also measure the leakage current and neutral line current of the grounding system.

Product features

1. A major breakthrough in grounding resistance testing technology. Non-contact measurement is safe and fast.

2. When measuring a grounded system with a loop, there is no need to disconnect the grounding downlead or use an auxiliary grounding electrode, which saves time and effort.

3. The clamp-on grounding resistance tester can measure grounding faults that cannot be measured by traditional methods and can be applied in situations where traditional methods are ineffective.

4. Acoustic and optical alarm functions, data storage, and data hold functions.

Technical parameters

Model	EM2100	EM2100A	EM2100C
Resistance Range	0.010Ω~1000Ω	0.010Ω~200Ω	0.010Ω~1200Ω
Current Range	--	--	0.00mA ~30.0A
Resistance Accuracy (23℃±5℃,75%RH)	Range	Resolution	Accuracy
	0.010Ω~0.099Ω	0.001Ω	±(1%rdg+0.01Ω)
	0.10Ω~0.99Ω	0.01Ω	±(1%rdg+0.01Ω)
	1.0Ω~49.9Ω	0.1Ω	±(1%rdg+0.1Ω)
	50.0Ω~99.5Ω	0.5Ω	±(1.5%rdg+0.5Ω)
	100Ω~199Ω	1Ω	±(2%rdg+1Ω)
	200Ω~395Ω	5Ω	±(5%rdg+5Ω)
	400~590Ω	10Ω	±(10%rdg+10Ω)
	600Ω~1000Ω	20Ω	±(20%rdg+20Ω)
Current Accuracy (23℃±5℃, 75%RH) (Only C type)	0.00mA ~9.95mA	0.05mA	±(2.5%＋1mA)
	10.0mA ~99.0mA	0.1mA	±(2.5%＋5mA)
	100mA ~300mA	1mA	±(2.5%＋10mA)
	0.30A~2.99A	0.01A	±(2.5%＋0.1A)
	3.0A~9.9A	0.1 A	±(2.5%＋0.3A)
	10.0A~19.9A	0.1 A	±(2.5%＋0.5A)
	20.0A~30.0A	0.1 A	±(3%＋1A)
Clamp Jaw Size	Φ32mm
Tester Dimension	260mm(L)X105mm(W)X60mm(H)
Weight	Appx. 1.54kg (include accessories)
Power Supply	DC6V Alkaline dry battery (LR6 1.5VX4PCS)
Single Measurement Time	0.5s
LCD Screen	4 Digits LCD display: 47mm(L)X28.5mm(W)
Data Storage	99 Groups
Audible & Visual Alarm	“Du-du-du”alarm sound
Alarm Threshold Setting	Resistance:1~199Ω;Current:1~499mA(only C type)
Clamp Jaw Open Size	32mm
Protection Level	Double insulation
Shift	Automatically
Accessories	Meter: 1PCS; Test Ring: 1PCS; LR6 battery: 4PCS; Case: 1PCS

Model comparison

Product pictures	Product model name	Jaw size	Resistance range	Current range	Alarm function	Storage function	Bluetooth function
	ETCR2100 Clamp-on Ground Resistance Tester	Φ32mm	0.010Ω～1000Ω	--	support	99 groups	--
	ETCR2100A Clamp-on Ground Resistance Tester	Φ32mm	0.010~200Ω	--	support	99 groups	--
	ETCR2100C Clamp-on Ground Resistance Tester	Φ32mm	0.010Ω～1000Ω	0.00mA~30A	support	99 groups	--
	ETCR2100+ Clamp-on Ground Resistance Tester	Φ32mm	0.010Ω～1200Ω	--	support	500 groups	support
	ETCR2100A+ Clamp-on Ground Resistance Tester	Φ32mm	0.010Ω～200Ω	--	support	500 groups	support
	ETCR2100C+ Clamp-on Ground Resistance Tester	Φ32mm	0.010Ω～1200Ω	0.00mA~20A	support	500 groups	support
	ETCR2150 Loop Resistance Tester	Φ32mm	0.010Ω-1500Ω	0.000mA~40A	support	999 groups	support
