Musktool-SF589 Sauna Room Heating Thermostat Digital Temperature Controller with Timer

Main Features :
Serial No. : Lisa0878

Specification

Contact Us For Quotation

Email: 464560351@qq.com

Whatsapp&Wechat:+8618620373879

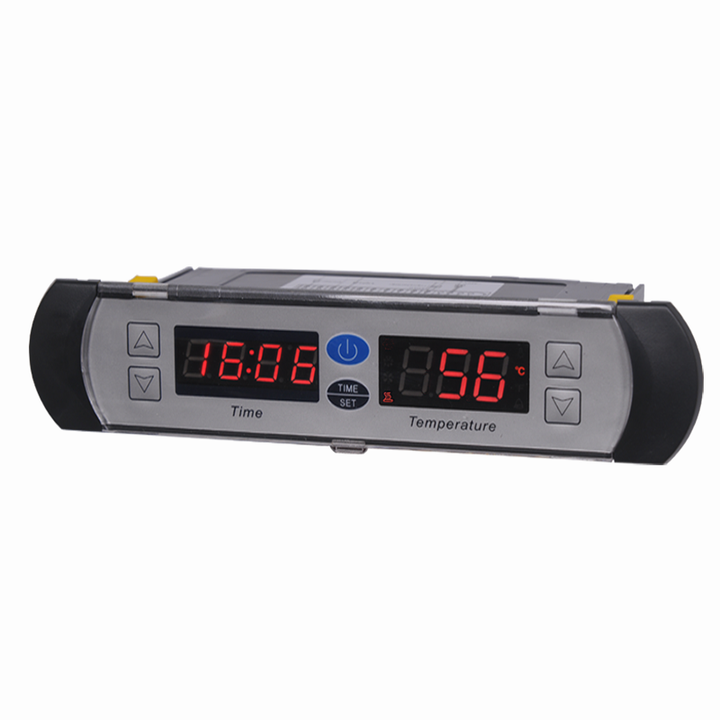

Musktool-SF589 Sauna Room Heating Thermostat Digital Temperature Controller with Timer

Product description

Temperature Display/ Temperature Control

Countdown heating control

Celsius / Fahrenheit degrees

R-start delay /Value storing

Parameter locking/Self testin

Technical Data

Range of temperature displayed:-45~115℃(-49~239℉)

Range of set temperature:-45~110℃(-49~230℉)

Accuracy:±0.1℃(±0.1℉)

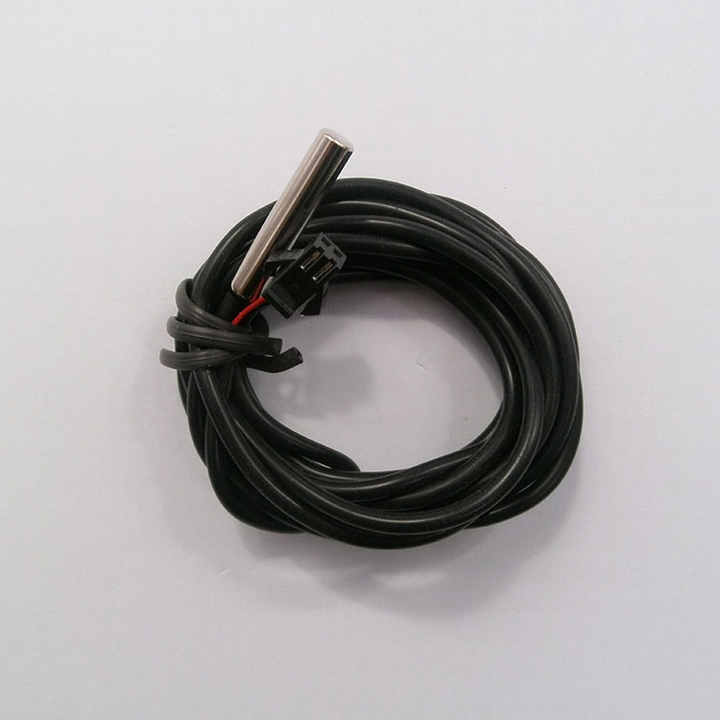

Temperature sensor: NTC,1 pc

Heatingr relay contact capacity: N.O. 30A/250VAC

Panel dimension:181(Length)×41(Width)×68(Depth)mm

Mounting hole dimension:138(Length)×32.5(Width)mm

Parameters

Parameter	Function	Set range	Default
E1	Lower setpoint limit	-45℃(-49℉)~Set temp.	45.0℃/113℉
E2	Higher setpoint limit	Set temp.~110℃(230℉)	95.0℃/203℉
E3	Temp. Hysteresis	0.1~50.0 ℃/0.2~90.0 ℉	0.2℃/0.4℉
E4	Comp. start delay time	00~10Min	00Min
E5	Offset on room temp.	-20~20.0 ℃/-36~36.0 ℉	1.5℃/2.7℉
CF	Temperature unit	00=℃ 01=℉	00

Lable: SF589 Thermostat Digital Temperature Controller with Timer
