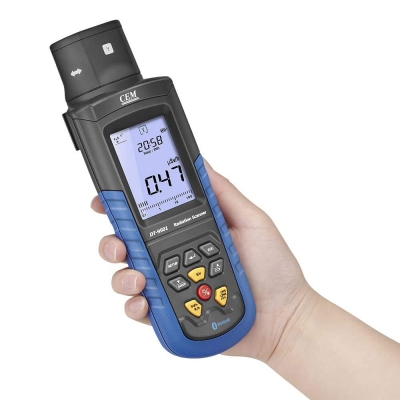

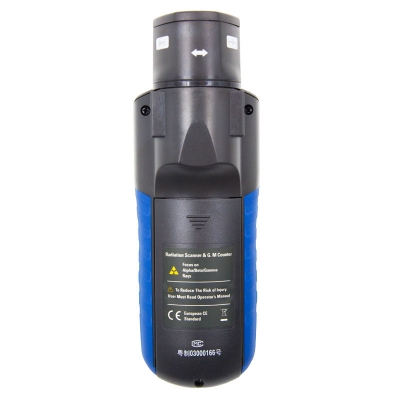

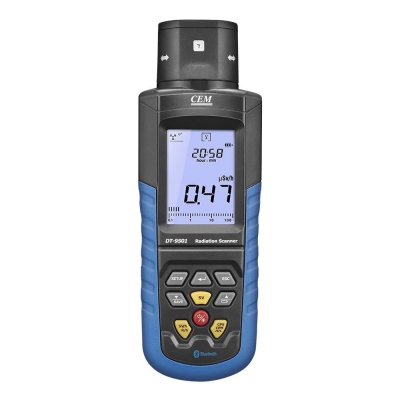

Xtester- CEM DT-9501 Professional Alpha , Betaa ,Gamma, chi ray Radiation scanner with datalogger function a,b,y,x ray
Technical Specification
Ray type | α, β,γ and χ rays |
Range | Radiation does rate: 0.01μSv/h-1000μSv/h |
Impulse does rate: 0-30,000cpm, 0-5,000cps | |
Radiation does accumulation: 0.001μSv-9999Sv | |
Impulse does accumulation: 0-9999 | |
Sensitivity | 108pes impulse or 1000 cpm/mR/hr Cobalt-60 radial environment with power of 1pSv/h |
Alpha ray: from 4MeV | |
Beta ray: from 0.2MeV | |
Gamma ray: from 0.02MeV | |
χ ray: from 0.02MeV | |
Ray selection switch | α, β,γ and χ rays selection |
Sensor | Halogen filled detector |
Output port | Bluetooth |
Display | Dual LCD display, numeric with all inspection data, with bar chart |
Alert | Can set alert value free, default set: 5μSv/hr |
Accuracy | Typical 15% |
Storage | Can store 2000 data automatically or by manually |
Detector working temperature | 0℃ to 50℃ |
Weight: | 206g |
Size(HxWxD): | 200mm x 70mm x 45mm |

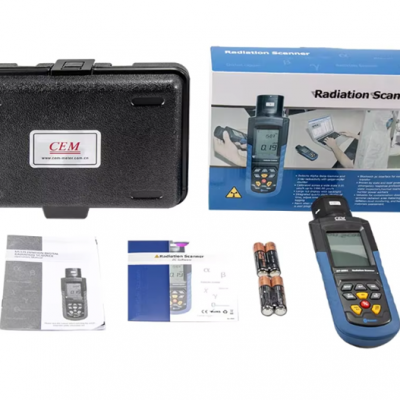

Accessories | Software, Carrying case and Gift box |
Features
| DT-9501 radiation scanner is a tested precision instrument, reliably measures not only γ rays, but α、β and X rays as well. It allows multifuctions such as dose accumulating, maximum recording, hand-operated store, data transfer to PC in real-time, data analysis etc. Low power consumption ensures that the testing data will be not lost for several years. |
Large LCD display High precision Internal memory Data evaluation by PC Low power consumption Bluetooth interface Date reset |
Packing Details
| To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided. |
