Xtester-DC1100 series-DIAL CALIPER

Main Features :
Serial No. : monica0084

Specification

Contact Us for Quotation

Email: mewoi008@mewoi.com

Whatsapp:+8619928420370

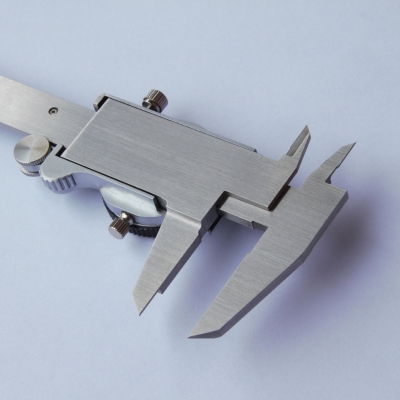

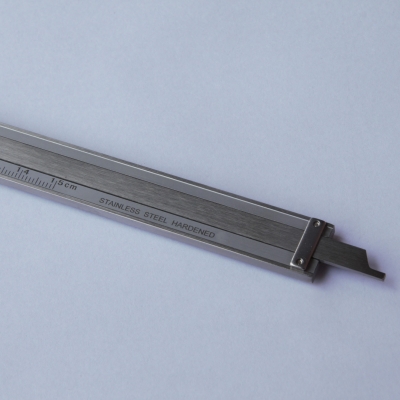

Xtester-DC1100 series-DIAL CALIPER

Introduction

·Made of stainless steel. ·Support both Metric and Inch. ·Resolutions: 0.02mm, 0.01mm, 0.001". ·All Measuring faces are treated through hardening and tuning process. ·Adjustable dial, easy for zero setting. ·For measuring of inside, outside, depth and step.

Specification

Range	Order No.	Resolution	Accuracy
0-100mm	DC1100-100	0.02mm	±0.02mm
0-150mm	DC1100-150	0.02mm	±0.03mm
0-200mm	DC1100-200	0.02mm	±0.03mm
0-300mm	DC1100-300	0.02mm	±0.04mm
0-150mm	DC1100-151	0.01mm	±0.03mm
0-200mm	DC1100-201	0.01mm	±0.03mm
0-300mm	DC1100-301	0.01mm	±0.04mm
0-4°	DC1101-100E	0.001"	±0.001"
0-6°	DC1101-150E	0.001"	±0.001"
0-8°	DC1101-200E	0.001"	±0.001"
0-12°	DC1101-300E	0.001"	±0.0015"

Lable: DIAL CALIPER
