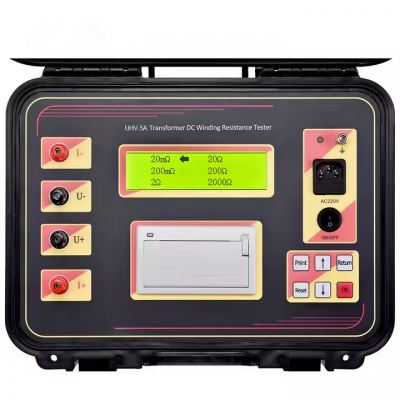

musktool-HV5A UHV-5A UHV-5A Transformer DC Resistance Tester
=
Product Paramenters
Product Feature
| *1、Display: 5.0 inch touch true color LCD, Chinese operation menu (English version can be customized). |
| *2、Storage: 1000 test records can be stored. |
| *3、Test mode: built-in large capacity lithium battery DC power supply, convenient for outdoor test needs. |
| *4、Five current options: automatic. |
| *5、High precision: accuracy 0.2% ± 2 characters. |
| *6、Measurement range: 1u Ω~100k Ω Resolution: 0.1u Ω. |
| *7、Printing: high-speed micro thermal printer, printing test results in real time. |
| *8、File data management: After the instrument is connected to the computer with a USB cable, it can be used as a USB disk, andthe user can copy the test record file directly from the instrument. |
| *9、The parameter setting is more perfect. The number, material, test winding Test phase, winding temperature, converted temperature value, etc. |
| *10、Automatic shutdown function: if the instrument does not operate within 3 minutes, it will automatically shut down. |
| *11、Power display: after the instrument is turned on, the current battery power will be displayed on the upper right corner of the screen. |
| *12、Under power shutdown: when the battery is low, the instrument will prompt the user and automatically shut down to Protect the battery for long-term use. |
