BYD10AS-Online Infrared Thermometer Temperature Sensor

Main Features :
Serial No. : CY019

Specification

Contact Us For Quotation

Email: 464560351@qq.com

Whatsapp&Wechat:+8618620373879

Musktool-BYD10AS-Online Infrared Thermometer Temperature Sensor

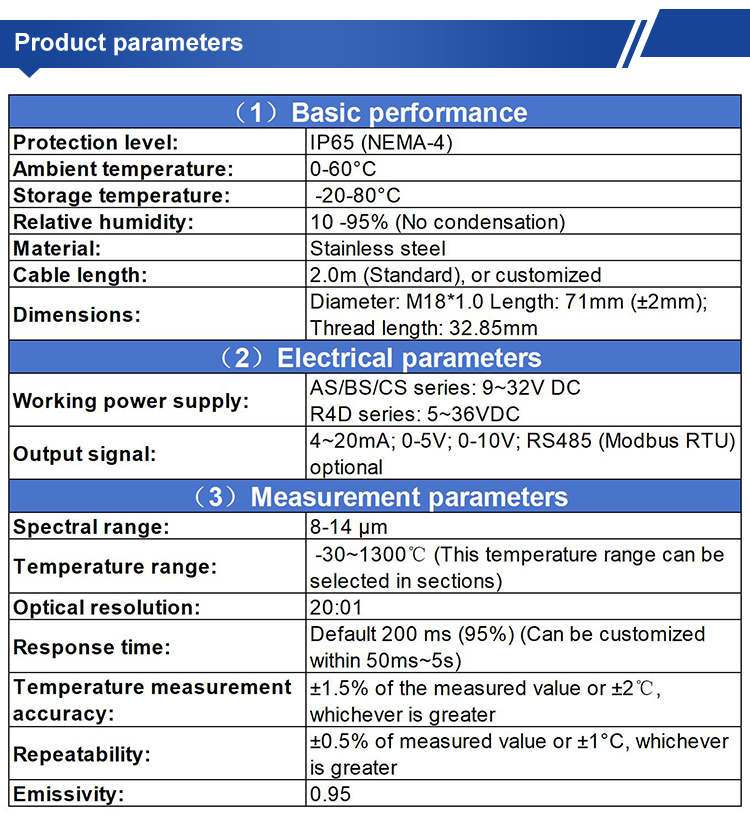

Overview

Protection class	IP65 (NEMA-4)
Ambient temperature	0-60°C
Storage temperature	-20-80°C
Relative humidity	10 -95% (non-condensing)
Material	stainless steel
Cable length	2.0m (standard), or customized
Spectral range	8-14 µm
Temperature range	-30~1300℃
Optical resolution	20:1
Response time	Default 200 ms (95%)
Temperature measurement accuracy	±1.5%
