BYD-D0550A-RS485 Short Wave Industrial Infrared Thermometer

Main Features :
Serial No. : CY013

Specification

Contact Us For Quotation

Email: 464560351@qq.com

Whatsapp&Wechat:+8618620373879

Musktool-BYD-D0550A-RS485 Short Wave Industrial Infrared Thermometer

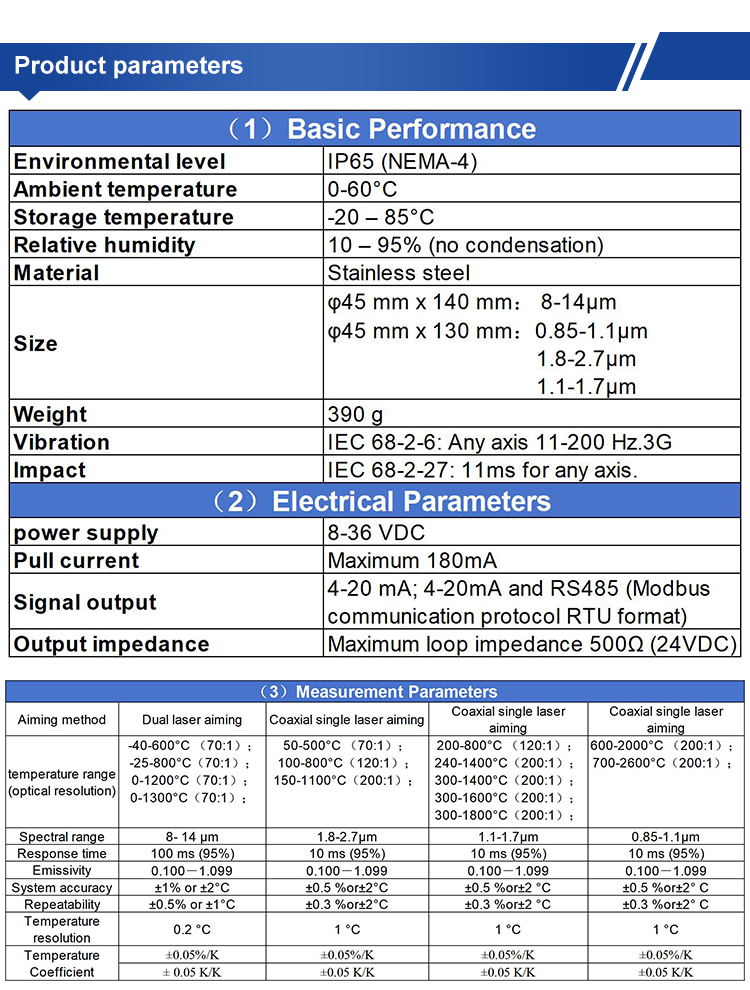

Overview

Environmental Rating	IP65 (NEMA-4)
Ambient Operation Range	0 – 60°C
Storage Temperature	-20 – 85°C
Relative Humidity	10 – 95% non-condensing
Material	Stainless Steel
Weight	390 g – 450 g
Power	8-36VDC
Outputs	4 - 20 mA; 4-20mA and RS485 （Modbus RTU)
