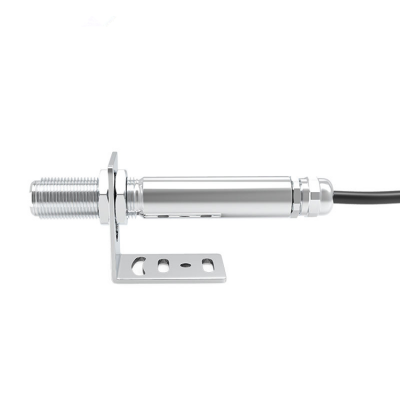

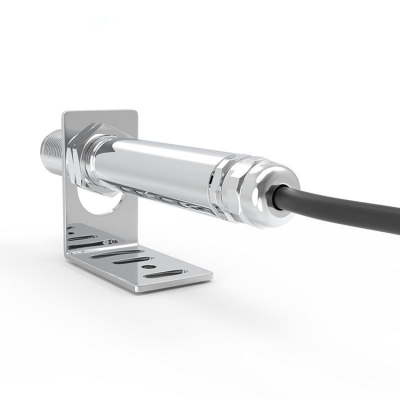

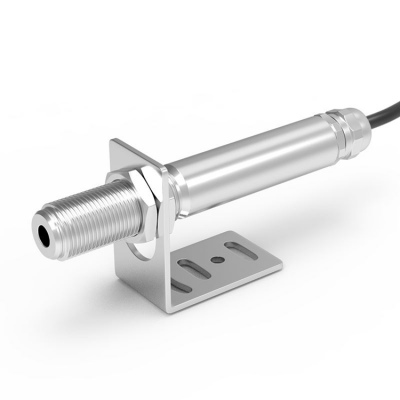

BYD15AC-Industrial Contactless Infrared Temperature Sensor

Main Features :
Serial No. : CY021

Specification

Contact Us For Quotation

Email: 464560351@qq.com

Whatsapp&Wechat:+8618620373879

Musktool -BYD15AC-Industrial Contactless Infrared Temperature Sensor

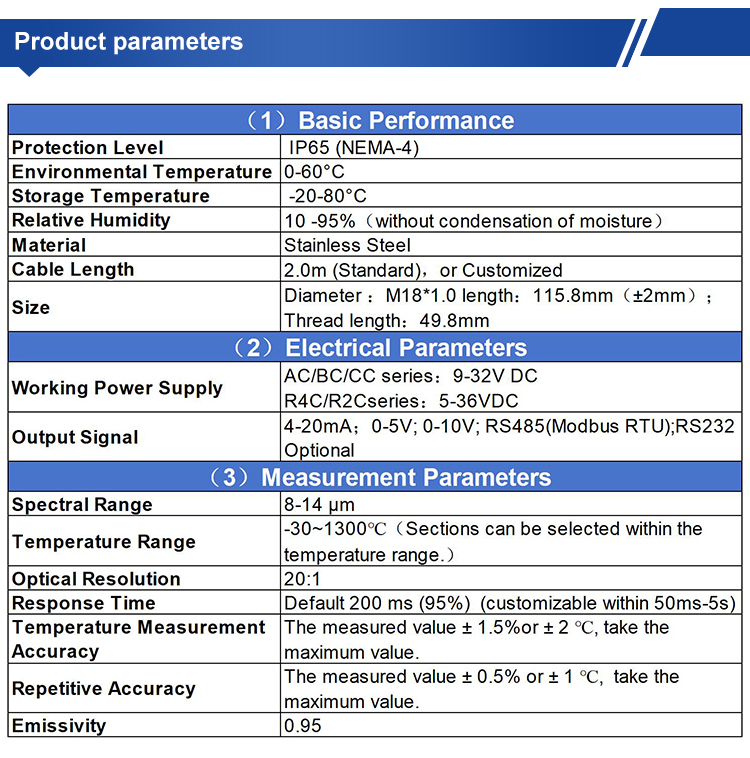

Overview

Spectral range	8-14 µm
Temperature range	-30~1300℃（Sections can be selected within the temperature range.-20-100°C,0-100°C,-20-200°C,0-200°C,-20-300°C,-20-400°C,+15)
Optical resolution	20:1
Response time	Default 200 ms (95%)
Temperature measurement accuracy	the measured value ± 1.5%or ± 2 ℃, take the maximum value.
Repetitive accuracy	the measured value ± 0.5% or ± 1 ℃,
Emissivity	0.95
Protection level	IP65 (NEMA-4)
Environmental temperature	0-60°C
Relative humidity	10 -95%
Material	stainless steel
Cable length	2.0m (standard)，or customized
