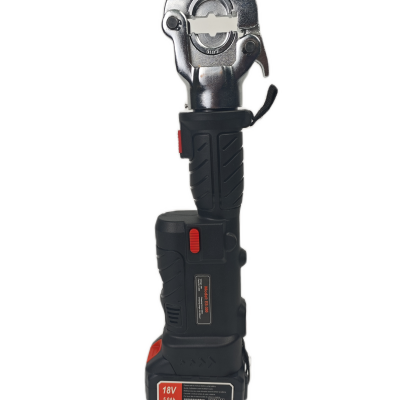

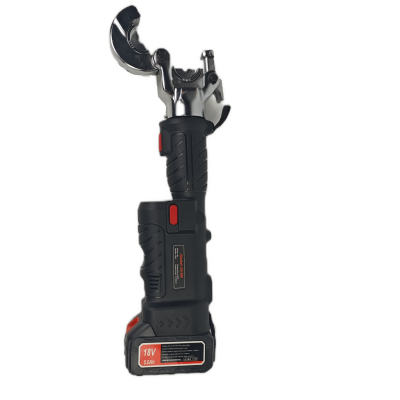

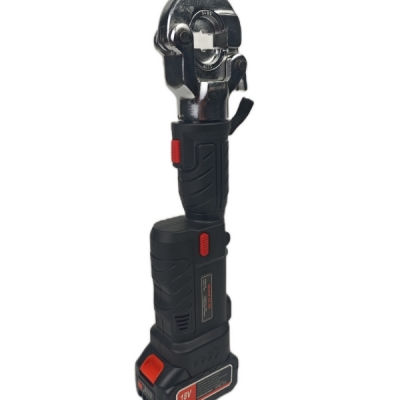

Musktool-EZ-300C-400 Hydraulic Clamp
Product Overview
ES-300: Lightweight intelligent crimping tool with an output force of 60kN and a stroke of 17mm, weighing only 4kg (approximately 38% lighter than the EZ-300). Powered by an 18V/2.5Ah battery, it is ideal for long-duration handheld operations. ES-400: Heavy-duty crimping tool featuring an output force of 120kN, a stroke of 42mm, and a crimping range of 16-400mm². Though it has a heavier body at 13kg, it delivers powerful output, making it suitable for large-scale and high-intensity crimping tasks. |
Specification
Model | EZ-300/300C (ES) | EZ/ES-400 | |
Crimp Force | 60KN | 120KN | |
Stroke | 17mm | 42mm | |
Crimp Times (Saturation Volage) | 170times (Cu150mm²) | 120times (Cu150mm²) | |
Crimp Cycle | 3-6s(Depends on cable size) | 6-18s(Depends on cable size) | |
Voltage/Capacity | 18V/4.0 (5.0)Ah | 18V/4.0 (5.0)Ah | |
Net Weight(with Battery) 4.3Kg | 7.2Kg | ||
Charging Time | 2 hours. | 2 hours. | |
Packaging | plastic box | plastic box | |

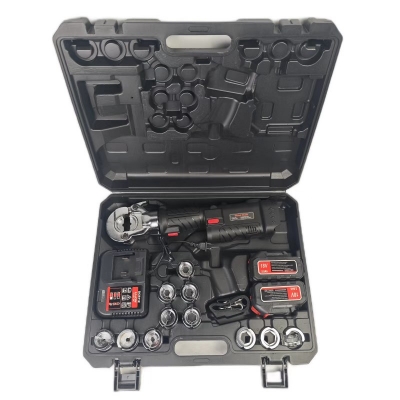

Accessories: | |||
Crimping molds | 300:16,25,35,50,70,95, 120, 150, 185,240,300mm² 400:16.25.35,50,70,95, 120.150, 185,240,300,400mm² | ||
Battery Charger Cylinder Seal | 2pcs 1pc 1set | ||
 |  |  |
EZ-300C LEZ-300C(Continuous) | EZ-300 LEZ-300(Continuous) | EZ-400 LEZ-400(Continuous) |
ES-300 ES-300C ES-400
