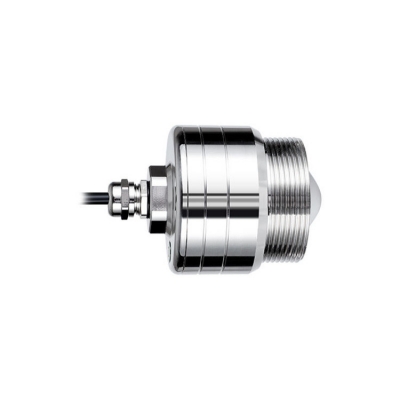

Musktool-FSTRD-905 Compact Size Radar Level Sensor RS485 Range 40m 50m Water Level Liquid Level Transmitter
【Product Description】

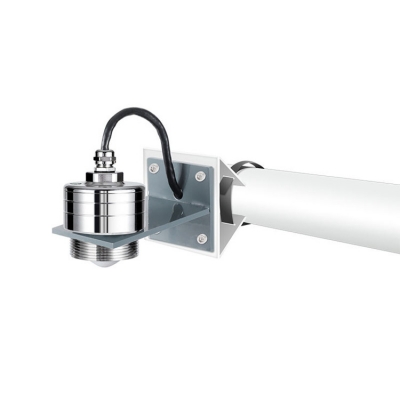

| FSTRD-905 radar water level meter is a frequency modulated continuous wave (FMCW) radar product operating at 76-81GHz. The maximum range of the product can reach 65m, and the blind zone is 10cm. Due to its higher operating frequency, larger bandwidth and higher measurement accuracy. The product provides a bracket fixing method, eliminating the need for on-site fabrication.Wires make installation quick and easy. |
【Technical Parameters】
0.1 m ~65m ±2mm -30~75℃ 0.5mm² IP67 Range Measurement accuracy Beam angle 6° Voltage 9~28 VDC Working Temperature Material Stainless steel/PP Cable IP Level Communication RS485 Cable entry PG9
【Product Features】
| ● Millimeter wave RF chip, realizing a more compact RF architecture, higher signal-to-noise ratio, and smaller blind area; ● 5GHz working bandwidth, giving the product higher measurement resolution and measurement accuracy; ● The narrowest 6° antenna beam angle, the interference in the installation environment has less impact on the instrument, and the installation is more convenient; ● Integrated lens design, compact size. |
