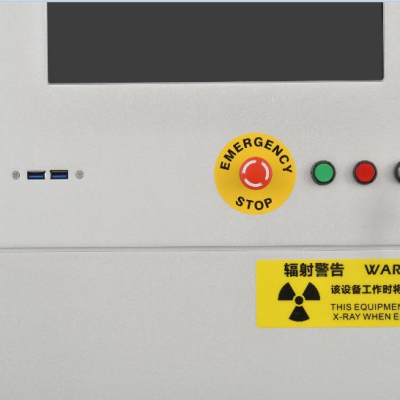

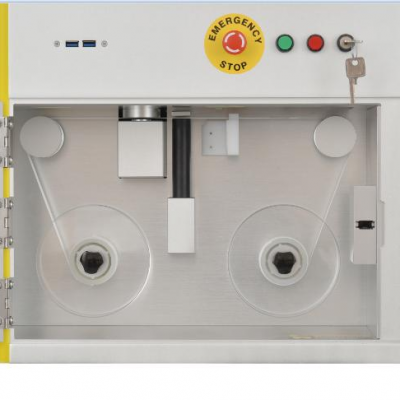

Musktool-MWAOA 200 Atmospheric Heavy Metal Online Analyzer
Introduction of instrument
| MWAOA-200atmospheric heavy metal on-line analyzer is based on the on-line detection technology and automatic enrichment of air particles perfect combination of technology, in line with the United States EPA IO-3.3 standard method, not only to detect particulate matter in the air of heavy metals and concentrations, but also Detection of particulate matter mass concentration at the same time. Detection lead, cadmium, chromium, arsenic and other heavy metals with low levels in the airborne particles and synergistic measurement of PM concentration can be realized, unattended and long-term automatic monitoring |
Application
MWAOA200can continuously measure and analyze a variety of heavy metal particles in the air and its m ass concentration, the specific areas of application are as follows: 1. Air quality monitoring 2. Air Particle Characterization 3. Air background measurement 4. Environmental assessment, permission 5. Location of pollution sources, source of pollution forecast and warning |
TechnicalParameters
Power supply: | 220VAC±10%,50Hz±1Hz |
Working ambient temperature: | -40～50℃ |
Working ambient humidity: | 0％RH～90%RH |
Mainframe ambient temperature： | 0℃~40℃ |
Mainframe ambient humidity： | 30%RH～60%RH |
Mainframe Size： | 435mmx 510mm x 660mm |
Way of working： | Continuous automatic monitoring; one year of trouble-free operation, and fault self-recovery function. |
Control method: | Computer control, and self-diagnosis and setting functions, real-time status monitoring capabilities, and can store more than 10 years of monitoring data. |
Operation interface: | Chinese or English user interface, touch screen operation, real-time sampling flow rate, sampling time, measurement status, heavy metal concentration value (standard or non-standard state can choose to set), content curve and other information. |
Installation method: | Fixed station standard cabinets installed or mobile vehicle mounted. |
Monitoring indicators: | 1. TSP / PM10 / PM2.5 mass concentration 2. Simultaneous monitoring of 30 elements such as Pb, Cd, Hg and As, etc. (Other elements can be expanded according to the follow-up needs of users) |
Applicable standards: | Heavy Metals: US EPA IO-3.3 Standard Method "X-Ray Fluorescence Spectroscopy for the Detection of Heavy Metals in Environmental Particles" Fine Particles: Technical Requirements and Test Methods for Continuous Monitoring System of Ambient Air Particulates (PM10 and PM2.5) |
Detection range: | Heavy metals: 0 ~ 100μg / m3 Fine particles: 0 ~ 10mg / m3 |
Detection limit: | Heavy metals: ng / m3 order of magnitude (sampling time 1 hour, flow rate 16.7L / min) Fine particles: <1 μg / m3 (24 hour average) |
Precision: | Heavy metal: RSD <1.5% (Pb, Cd, As sampling time 4 h). Fine particles: ± 5μg / m3 (24 hours) or less |
Sampling rate: | (4 ~ 20) L / min adjustable |
Sampling and analysis time: | 10 ~ 300 minutes, adjustable |
Instrument configuration
Power supply: | 220VAC±10%,50Hz±1Hz |
Working ambient temperature: | -40～50℃ |
Working ambient humidity: | 0％RH～90%RH |
Mainframe ambient temperature： | 0℃~40℃ |
Mainframe ambient humidity： | 30%RH～60%RH |
Mainframe Size： | 435mmx 510mm x 660mm |
Way of working： | Continuous automatic monitoring; one year of trouble-free operation, and fault self-recovery function. |
Control method: | Computer control, and self-diagnosis and setting functions, real-time status monitoring capabilities, and can store more than 10 years of monitoring data. |
Operation interface: | Chinese or English user interface, touch screen operation, real-time sampling flow rate, sampling time, measurement status, heavy metal concentration value (standard or non-standard state can choose to set), content curve and other information. |
Installation method: | Fixed station standard cabinets installed or mobile vehicle mounted. |
Monitoring indicators: | 1. TSP / PM10 / PM2.5 mass concentration 2. Simultaneous monitoring of 30 elements such as Pb, Cd, Hg and As, etc. (Other elements can be expanded according to the follow-up needs of users) |
Applicable standards: | Heavy Metals: US EPA IO-3.3 Standard Method "X-Ray Fluorescence Spectroscopy for the Detection of Heavy Metals in Environmental Particles" Fine Particles: Technical Requirements and Test Methods for Continuous Monitoring System of Ambient Air Particulates (PM10 and PM2.5) |
Detection range: | Heavy metals: 0 ~ 100μg / m3 Fine particles: 0 ~ 10mg / m3 |
Detection limit: | Heavy metals: ng / m3 order of magnitude (sampling time 1 hour, flow rate 16.7L / min) Fine particles: <1 μg / m3 (24 hour average) |
Precision: | Heavy metal: RSD <1.5% (Pb, Cd, As sampling time 4 h). Fine particles: ± 5μg / m3 (24 hours) or less |
Sampling rate: | (4 ~ 20) L / min adjustable |
Sampling and analysis time: | 10 ~ 300 minutes, adjustable |
