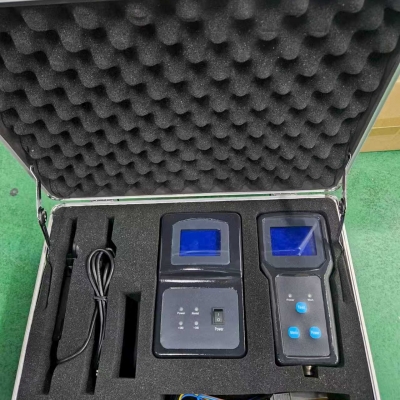

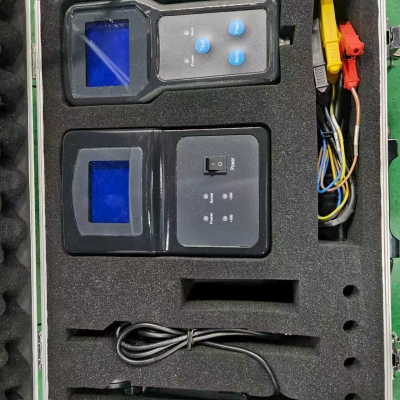

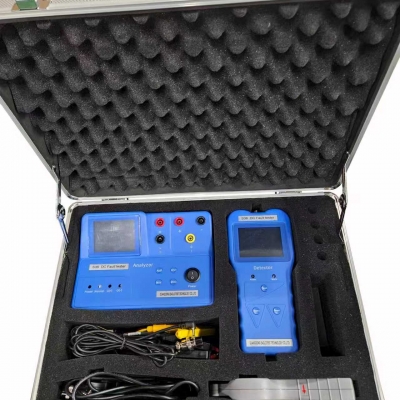

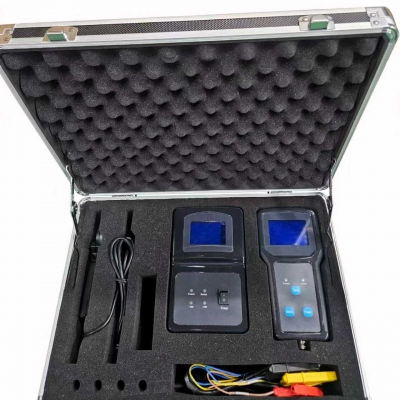

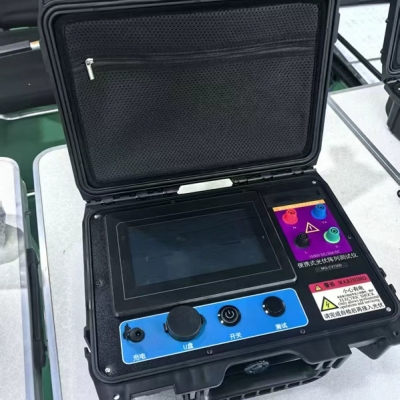

Main Features : Musktool-YW-D600-DC Ground Fault Locator
Serial No. : Owen0487

Specification

Musktool-YW-D600-DC Ground Fault Locator

Email:464560351@qq.com

Whatsapp&Wechat:+8618620373879

Specifications

(1) Using the environment

The environment temperature: -5℃～+50℃;
Relative humidity: Less than or equal to 90%;
(2) Wireless communication Specifications
Power of signal : ≤ 10dbm;
Signal band: 433M
hz;
Sensitivity: －106dBm;
Transmission distance: In the range of visibility, the reliable transmission from the ground 2m distance of 100m.
(3) Analyzer Specifications
Applicable DC system voltage levels: 48V,110V,220V
System voltage measurement range: 0V to 300V;
DC to the ground voltage measurement range: 0V to 300V;
AC to the ground voltage measurement range: 0V to 280V;
Voltage measurement resolution :0.1V
System grounding resistance measurement range: 0 to 600KΩ;
Grounding resistance measurement resolution: 0.1KΩ;
Display mode: LCD;
Detection signal current size: 0 to 2mA;
Detection signal voltage amplitude: 0 to 50V;
Signal frequency: 0.167Hz;
(4) Detector Specifications
Under signal mode the branch insulation resistance detection range: 0 to 600KΩ(220V) ,0 to 300KΩ(110V),0 TO 60KΩ(48V);
Under no signal mode the branch insulation resistance detection range: 0 to 50KΩ(220V) ,0 to 25KΩ(110V),0 TO 10KΩ(48V);
Insulation resistance measurement resolution: 0.1KΩ;
Time waveform display:12s;
Current measurement range: ±50mA;
Current measurement resolution:0.01mA;
Display mode: LCD;
Direction display : up arrow indicate same direction and down arrow indicate inverse direction
Clamp size: Ф30mm;

Functional features

1.The main present of main features

(1) Function of system grounding voltage measurement ,The instrument can measure the Positive system grounding voltage, negative grounding voltage, system voltage, The scope of the measurement voltage is 0 to 300V.

(2) Function of system Insulation resistance measurement, The instrument can measure the Positive system grounding insulation resistance, negative grounding insulation resistance, The scope of the measurement insulation resistance is 0 to 999.9KΩ.

(3) Function of testing the AC fleeing into DC, The instrument can decide fault of AC fleeing into DC, and can measure the AC Voltage value, The scope of AC voltage value is 0 to 280V.

(4) Function of branch Insulation resistance measurement. The instrument can measure the Positive or negative grounding insulation resistance.

(5) Function of branch grounding fault Point Location .The instrument can achieve the function of branch grounding fault Point Location.

(6) Function of ammeter, The instrument can used as a high-precision ammeter.

(7) Function of finding grounding on no signal, The instrument can detect the system grounding on no signal to system.

(8) Function of display the grounding direction, The instrument can tell the grounding direction to user by a direction arrow.

(9) Function of analyze the Insulation Index. Using the grounding detection function, after detecting a slip, detector will show the case of this branch insulation index.

(10) Function of display the Squiggles. When using the detector detect the branch instrument fettle, LCD will display the branch current changes’ Squiggles, Facilitate users to achieve fast and accurate to detection the grounding.
