Musktool-CTL-Whole Body TLD Dosimeter（thermoluminescent dosemeter）
Introduction

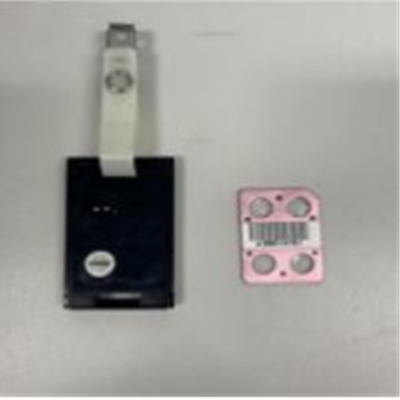

| The CTL-Whole Body TLD Dosimeter consists of a dosimeter holder and dosimeter card. It is primarily used for radiation dose monitoring of workers and can be widely applied in places such as nuclear power plants and radiological laboratories, or situations related to environmental protection, healthcare, mining, and metallurgy. |
Features
l Each dosimeter card contains two dosimeter elements for measuring Hp(10) and Hp(0.07) respectively. l Sealing: The dosimeter card features a fully sealed design using a special polyester film, which is durable, moisture-proof, contamination-resistant, and reusable. l The dosimeter holder includes four shielding layers: Position 1 shielding layer: Cu; Position 2 shielding layer: PTFE; Position 3 shielding layer: Mylar film; Position 4 shielding layer: Sn. It enables energy discrimination function. |
Specifications
l Thermoluminescent material: LiF (Mg,Cu,P); l Dimensions: 43×31×1.5 mm; l Dose measurement range: 0.01 mSv to 10 Sv l Dose nonlinearity: Within the range of 0.01 mSv to 1 Sv, deviation < 30% l Measurement repeatability: For 10 consecutive measurements at 1 mGy, the standard deviation of the results is < 2% |
