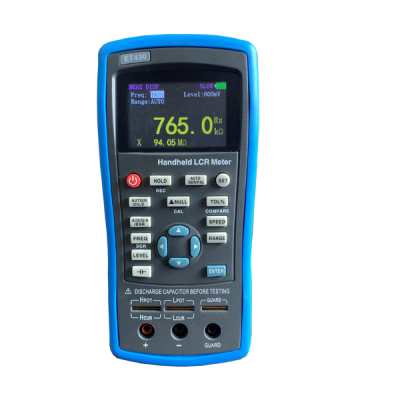

Musktool-ET43 Handheld New Compact LCR Meter (ET430B,ET430,ET431,ET432,ET433)

Product Overview

ET43 series hand-held bridge sets 2.8 inch TFT display, flexible and convenient button operation and full speed USB communication in one; large capacity lithium battery can ensure long-term work. Functionally, it has not only comprehensive measurement parameters, but also

deviation measurement and screening. The output frequency can be continuously adjusted. In terms of performance, the basic accuracy is up to 0.2%.

Product Features

The highest measuring frequency is 100kHz, and the stepping frequency is continuously adjustable at 1Hz;
Supporting DC Resistance and Electrolytic Capacitance Measurement;
Internal bias voltage output (10mV-500mV);
Automatic Recognition of Component Measurement;
Support screening and deviation measurement;
2.8-inch TFT display, 4-bit semi-display;
USB communication interface;
Large capacity lithium battery power supply;
Support SCPI protocol;
Provide system settings, can configure language, buzzer, screen brightness and so on according to their own requirements;
The basic measurement accuracy is 0.2%;
Adjustable measuring speed, manual and automatic range;
Short circuit correction with open circuit;
Provide multiple test ports.

Main technical indicators:

Model	ET430B	ET430	ET431	ET432	ET433
Test frequency	100Hz, 120Hz, 1KHz, 10KHz	100Hz, 120Hz, 1KHz, 10KHz,40kHz, 100K Hz	100Hz, 120Hz, 1KHz, 10KHz	100Hz, 120Hz, 1KHz, 10KHz, 40KHz, 100KHz	100Hz-100KHz Continuously adjustable 1Hz stepping
Basic accuracy	0.30%	0.30%	0.20%	0.20%	0.20%
Display	2.8 inch TFT LCD
Display digit	Main parameters: 5 bits, secondary parameters: 5 bits
Measurement parameters	Main parameters: L/C/R/Z, sub-parameters: X/D/Q/theta/ESR
Electrolytic capacitor mode	×	√	√	√	√
DCR mode	×	×	√	√	√
measuring range	L：2000H ，C：20.000mF ，R：200.00MΩ
Measurement display speed	(slow, medium, fast
Internal offset	×	0. 1V ，0.3V ，0.60V	0-500 mV adjustable, 1 mV step.
Test level	0. 1V ， 0.6V	0. 1V ， 0.3V ， 0.6V	0. 1V、0.3V、0.6V 、 1V		10mV~ 1100mV , 1 mV stepping, Continuously adjustable
Calibration function	Open circuit calibration and short circuit calibration
Screening function	The limit range of screening can be set to 1%-50%, of which the fixed points are 1%, 5%, 10%, 20%.
Deviation measurement	Used to compare the percentage of deviation between the component and the nominal value set and display
Other	Adjust backlight brightness, automatic shutdown time can be set, Chinese and English optional, USB Device communication

Standard accessories:

Type C cables;
Power adapter;
Short circuit chip;
Red&black rubber plug;
Large capacity lithium battery
Kelvin test clip(Except ( ET430B, 430)

Optional accessories:

elvin test clip( ET430B, 430)
SMD testing cla
