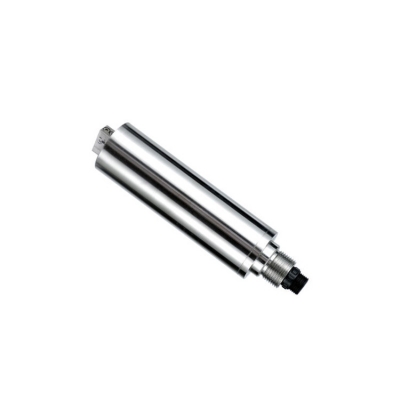

Musktool-FST100-ZD102 Low Cost RS485 Modbus Water Turbidity Sensor Probe for Water Quality River Monitoring

Main Features : Musktool-FST100-ZD102 Low Cost RS485 Modbus Water Turbidity Sensor Probe for Water Quality River Monitoring
Serial No. : Owen0186

Specification

Contact Us For Quotation

Email: 464560351@qq.com

Whatsapp&Wechat:+8618620373879

Musktool-FST100-ZD102 Low Cost RS485 Modbus Water Turbidity Sensor Probe for Water Quality River Monitoring

【Product Overview】

Turbidity sensors measure the number and size of suspended particles in water and are used to assess water clarity and particulate pollution. They play a key role in drinking water treatment, environmental monitoring and river flow measurement.

【Product Features】

● 90° scattered light principle, built-in temperature sensor;

● RS-485 interface, Modbus-RTU protocol;

● Dual high-impedance differential amplifier, strong anti-interference, fast response speed;

● Protection level IP68;

● Small size, more convenient installation, can be used for online uninterrupted water quality monitoring.

【Application Range】

● Metallurgy, electricity, pharmaceuticals, chemicals, petroleum

● Water quality treatment, food and other industries

● Aquaculture, environmental monitoring, sewage treatment and other water quality monitoring related industries

【Technical Parameters】

Turbidity measurement range	0.4000NTU
Resolution	0.01%
Measurement accuracy	±1.0%FS
Temperature measurement range	0...80℃
Resolution	0.1℃
Temperature measurement accuracy	±0.2 ℃
Withstand voltage range	0... 3bar
Shell material	316 stainless steel
Power	≤10W
Current signal output	4~20mA(adjustable/three-wire)
Current accuracy	1%FS
Output load	Less than 750 Ω
Datacommunication	Rs485(MODBUS-RTU)
Working power	9~30VDC(12VDCrecommended)
Working humidity	Relative humidity<90%
Process connection	G 3/4
Electricalconnections	Direct leadwith 5 meter cable
Protection class	IP68

【Product Dimensions】

图片关键词

图片关键词

图片关键词

图片关键词

图片关键词

图片关键词

图片关键词

图片关键词

图片关键词

Lable: Musktool-FST100-ZD102 Low Cost RS485 Modbus Water Turbidity Sensor Probe for Water Quality River Monitoring
