Musktool-FST700-CS03 RS485 Ultrasonic Water Level Sensor Noncontact Water Level Sensor

Main Features : Musktool-FST700-CS03 RS485 Ultrasonic Water Level Sensor Noncontact Water Level Sensor
Serial No. : Owen0185

Specification

Contact Us For Quotation

Email: 464560351@qq.com

Whatsapp&Wechat:+8618620373879

Musktool-FST700-CS03 RS485 Ultrasonic Water Level Sensor Noncontact Water Level Sensor

【Product description】

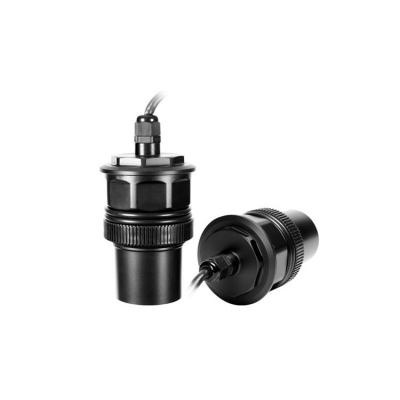

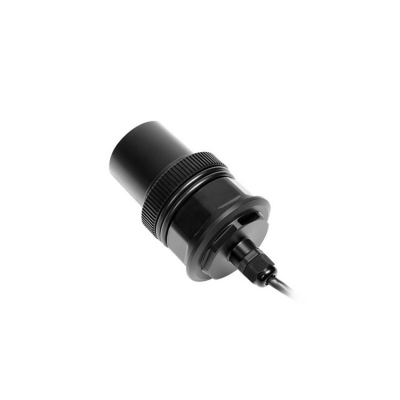

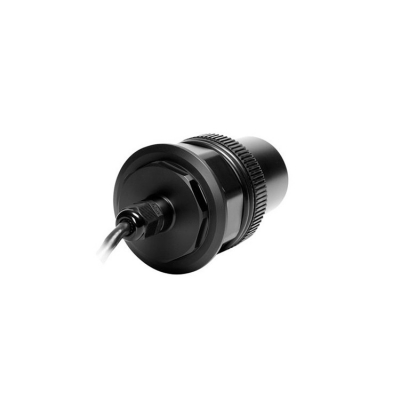

FST 700-CS03 ultrasonic liquid level sensor is an integrated measuring instrument consisting of a sensor and a built-in intelligent circuit control system. It is an instrument that measures the distance from a surface to the surface of liquids and objects. Liquid level gauges are easy to install and maintain, and are widely used in non-contact distance measurement to reliably measure the surface position of clean water, sewage, glue, mud or channel flow, etc.

【Technical Parameters】

Supply voltage	12~30VDC
Output signal	RS485 (ModbusRTU communication protocol), RS485+4-20mA
Working current	30mA@12V DC
Power consumption	<0.25W
Range	0~5...10m
Precision	0.3%~1%FS
Response time	≤1s
Blind spot	≤40cm
Operating temperature	-20-60℃
Line length	2m
Working frequency	40KHZ±5%
Work pressure	≤0.3MPa
Degree of protection	IP67

【Scope of application】

● Sewage and industrial water level measurement

● River and well level measurement

● Corrosive level measurement
