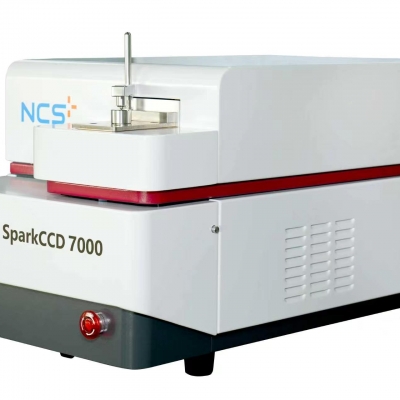

Musktool-SparkCCD 7000 Full-spectrum Spark OES

Overview

SparkCCD 7000 Spark Optical Emission Spectrometer uses high-resolution linear CCD (Charge-coupledDevice) to perform full-spectrum detection. Using an intelligent control argon-flushed light chamber system,instrument performance more stable and have a longer service period. The abundance of spectral linessupplies more chioce and better results. The curve can jump automatically subsection, making seamlessconnection between different spectral lines of the same element, Expanding the scope of analysis. The thirdelement interference correction makes the element analysis more accurate. Its advantages include unrestrictedby the photomultiplier arrangement, ability to test any elements without changing the hardware, and easymaintenance. Its excitation light source is a full digital solid-state light source with excitation continuouslyadjustable energy and frequency, suitable for various materials. NET-based acquisition is fast with betteradaptability

Technical specifications and advantages

Optical system Paschen-Runge mounting

High luminous holographic grating, focal length:500mm ,2700 grooves/mm;
Spectral line range: 130-800 nm (N, Li, Na and K elements can be analyzed)
Dispersive power: First order dispersive rate: 0.74nm/mm;
Second order dispersive rate: 0.37nm/mm Resolution: better than 0.01nm Detector with multiple CCDs, no testing channel limits
Adoption of brand new cast optical chamber withextremely low thermal expansion coefficient and highinstrument stability
Constant temperature system, temperature control accuracy ±0.1℃
Cold machine (shut down for 12 hours) start 30min,hot machine start 5min

CCD Detector

High resolution CCD detector 3648 pixels per chip Single pixel size is only 8μm
New Monitoring System Brand new system monitoring of instrument statusthat displays the instrument status and workprogress at bottom of the software
Operation simple and quick, easy to maintenanceand debugging

Spark stand

Maximum weight of sample: 50kg.
Newly designed coaxial spark stand with optimized
internal gas circuit to greatly reduce argon consumption. Self-purging function that keeps the cavity clean.
Specially-designed discharge chamber to ensure discharge under optimal conditions.

Technical specifications and advantages

Spark excitation source

Discharge parameters protected by passwords.

Continuously adjustable light source frequencies, energy andother parameters.

Maximum discharge frequency: 1000Hz. MTBF ＞ 5000 hours

Integral acquisition

NET-based port data acquisition for stable data transmissionand low configuration

Multi-thread data acquisition to improve the stability of thesoftware and data reliability.

Argon gas consumption

Programmable argon-flushed system with short argon-flushingtime and low consumption

Brand new argon gas utilization system

Ultra-low standby flour rate: 60ml/min, a bottle of argon can be used for 70 days for 24 hours standby

Basic parameters of instrument

Power supply	220V±10%, single-phase 10A, 2.5KVA
Outline dimensions	870(L)×470(W)×440mm(H)
Weight	About 100Kg
Operating environment	Temperature: 20-25℃ Humidity: less than 70%
Argon purity	≥99.999%
