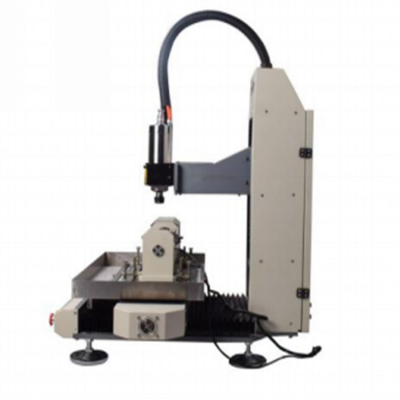

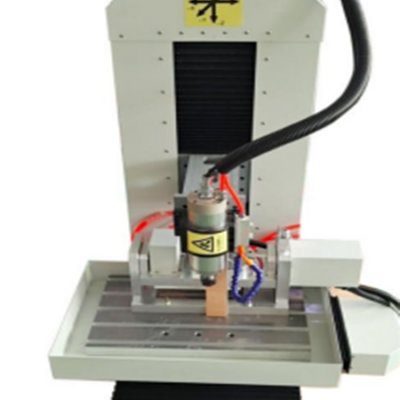

Musktool-Steel structure 3040 5Axis 2200W CNC router Machine
Product Overview
Highlights for steel frame 5axis 3040
1. XYZ all linear guide, high precision work on metal. 2. Steel machine frame, more stable, Stronger rigidity. 3. A 、B axis use Harmonic reducer, High processing progress. 4. Higher precision work on aluminum, Cooper, stainless steel(accuracy≤0.05mm). 5. Machine frame fully enclosed structure design and was helpful to keep the accuracy of screw. |
Effective working travel（3axis） | 400*300*400mm | |
Effective working travel（5axis） | 200*200*250mm | |
Shape dimension | 990*820*1100mm | |
Working table dimension | 500*300mm | |
Machine frame material | 45#steel | |
Acceptable material size | 400*300mm( for 3axis) | |
Driving units | X/Y/Z Axis SFU2005 Ball srew | |
Sliding units | X/Y/Z Axis HGH20 linear guide | |
Control units | MK6-ET XHC motion controller support Mach3 software ( optional) | |
Ethernet six-axis motion control card IMC3062E support RTCP ( optional) | ||
Offline DSP HG709D system（optional） | ||
B axis 25/C axis 20 Harmonic reducer | B axis(Slope) | 180degree |
C axis(Rotary axis) | 360degree | |
speed ratio | B: 1:120 / C: 1:100 | |
Maximum torque | B: 148 N.m / C: 77N.m | |
Closed loop motors type( optional) | XY 57-76 two-phase four wire,5A 2N.m | |
Z 86-95 two-phase four wire,6A 6.5N.m | ||
BC 60-86 two-phase four wire,5A 3N.m | ||
Servo motors type( optional) | XY 60 400W Rated torque: 1.27N.m, Peak torque: 3.81 | |
Z 80 750W Rated torque: 2.39N.m, Peak torque: 7.17 | ||
BC 60 400W Rated torque: 1.27N.m, Peak torque: 3.81 | ||
Spindle motor | Brand new 2200W water cooling spindle, 24000RPM | |
Principal axis collet | ER-20 1-13mm | |
Repeat accuracy | 0.03~0.05mm | |
Spindle precision | radial beat accuracy 0.01 mm | |
Operating system | Newest Win10 and compatible with old version | |
Maximum feed speed | 0-4000mm/min | |
Computer connection | Ethernet port | |
Command code | Tap 、 nc 、ncc 、 txt | |
Safeguard | Photoelectric limit | |
Operating Voltage | AC220V/110V | |
Warranty | 1 Year | |
Package size | One wooden box, 100x90x130cm | |
Gross weight | 310kg | |
