Musktool-HY6040 5Axis 2200W USB Mach3 router machine
Product Overview
Highlights for HY6040 1. 1500W/2200w Water-Cooling Spindle 2. Ball screw high precision 3. Independent power supply for main board, longer service life 4. USB connection for Mach3 5. Limited switch added 6. Auto-Checking function 7. Independent driver, more stable, better accuracy 8. able to do surface engraving and 3D engraving, 4th axis(rotary can be added）. |
Product Parameters
Effective working travel | 583(X)mm*420(Y)mm*240(Z)mm | |
Shape dimension | 855(L)mm*875(W)mm*600(H)mm | |
Frame materials | Aluminum alloy 6063 and 6061 the unique and dedicated mold extrusion profiles. let counterfeiters dwarfs | |
acceptable material thickness | ≤240mm | |
Driving units | X/Y/Z axis | SFUR1605-DFC7-P0 ball screw |
Sliding units | X axis | Dia.20mm chrome plate shafts |
Y axis | Dia.20mm chrome plate shafts | |
Z axis | Dia.16mm chrome plate shafts | |
X,Y,Z Axis Stepping motor type | ||
A,B Axis Stepping motor type | ||
Support 4th Axis maximum clamping diameter | Center height 65mm, 3 Jaw 80mm Chuck, Maximum clamping 125mm ,Tailstock maximum expansion length 50mm , Maximum clamping weight 30kg | |
5th axis working travel | 155(X)mm*155(Y)mm*105(Z) 360 degree 30-90 degree suggested Plate dia, 180mm | |
Spindle motor | Brand new 1500/2200W water cooling spindle, 24000RPM | |
Principal axis collet | ER11 1-7mm; ER-20 1-13mm | |
Repeat accuracy | 0.05mm | |
Spindle precision | radial beat accuracy 0.03 mm | |
Operating system | Win10 and below | |
Maximum speed | 0-4000mm/min | |

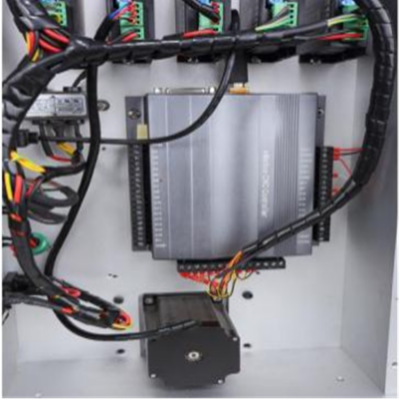

Control unit | nMotion USB motion card, higher accuracy, better quality | |
Computer connection | USB port | |
Command code | G code, nc, ncc, txt, tap | |
Operating Voltage | AC220V/110V | |
Accessories | bits, tool kits etc. | |
Warranty | 1 Year, 3months for the spindle | |
Package size | One wooden box, 116*94*56cm | |
Gross weight | 114KG | |
