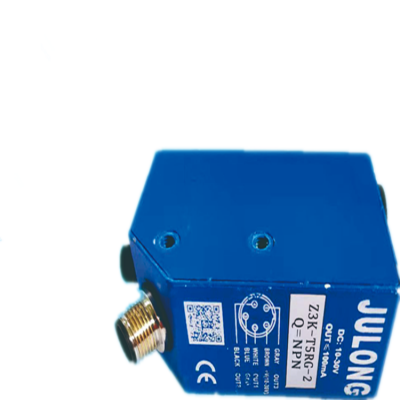

Musktool-Z3K-T5BW mark detection and line photoelectric eye

Musktool-Z3K-T5BW mark detection and line photoelectric eye

2024-07-22 17:32:42

Musktool-Z3K-T5BW mark detection and line photoelectric eye

Main Features :
Serial No. : monica0454

Specification

Contact Us For Quotation

Email: 464560351@qq.com

Whatsapp&Wechat:+8618620373879

Musktool-Z3K-T5BW mark detection and line photoelectric eye

Introduction

Optical Structure of the Same Optical Axis

Multiple light sources optional

Strong anti-interference ability of metal shell

Analog output

Technology features

detection mode	Coaxial reflector
Detection distance	12mm±3mm
service voltageVs	DC10-30V±10%<10% corrugated
Current consumption	45 mA Below
Light source chromatography	Red, Green, Blue and White
Detection angle	15 per cent vertical allowable deviation of light ± measured surface
output voltage	High level Vs-(≤1.5) Low level (≤1.2 V)
Load current	100mA
sensitivity	Single loop adjustable
Anti-environmental light	Lamps and incandescent lamps 3000 Lx sunlight 10000 Lx
levels of protection	IP67( moisture and dust)

Lable: Musktool-Z3K-T5BW mark detection and line photoelectric eye
