Musktool-VVL-V1000-6T-Deep-sea working underwaterrobot
Product Overview
The VVL-V1000-6T is a deep-sea working-class remotely operated vehicle (ROV). As a larger "work-class" unit, it has an increased diving depth of up to 600 meters and enhanced operational capabilities. Designed as a deep-sea working/intervention ROV, it focuses on large-depth (600-meter class) observation and light-duty operational tasks. |
Standard Version Technical Parameters
Robot section
| |
Robot dimensions and weight | 1200*750*550mm，100kg |

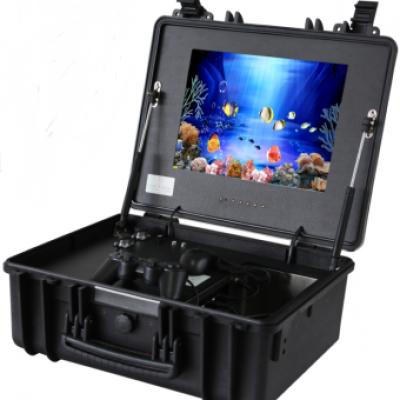

Dimensions and weight of the control box | 560*480*220mm,17kg |
Material structure | It adopts a frame structure made of polymer materials. The floating body is made of glass microsphere composite material resistant to a pressure of 3,000 meters, which is corrosion-resistant and can be used in both seawater and fresh water. |
Thruster | 8 high-power speed-adjustable thrusters, including 4 horizontal thrusters and 4 vertical lift thrusters |
Camera parameters | Front Camera: a) 1080P b) Minimum illumination: 0.1 Lux (color), 0.01 Lux (black and white) c) Image sensor: 2.0M pixels d) Adjustable angle: -40° ~ 80° e) Focal length: optional 4x or 18x zoom lens
Side-view and downward-view cameras: a) 700-line high-definition analog lens b) Focal length: fixed focus |
Lighting | Main lighting: two sets of 50W high-brightness LED lights Side, bottom and gimbal: a total of five sets of 15W high-brightness LED lights |
Cables and cable cars | Length: 100m Buoyancy: Neutral Tensile strength: Not less than 200kg Cable: Slip ring reel, cable capacity not less than 150m |
Diving depth | Maximum diving depth 300m |
Speed | 3 sections |
Sensor | 3D electronic compass, depth sensor, temperature sensor |
Function | It is equipped with self-inspection and self-protection functions against water leakage, electric leakage, short circuits, and other faults. |
Manipulator | Materials: Aluminum alloy, 304 stainless steel and polymer materials Maximum gripping force: 2kg Maximum gripping diameter: 200mm |
Water control | |
Monitor | The monitor adopts a 19-inch high-brightness LCD display, which shows time/date, with a brightness of 600-800. |
Computer main unit | The computer adopts an embedded host with an I5 processor and a 1T hard disk capacity. |
Video overlay | It is equipped with a video overlay function, which can superimpose date and time, depth, temperature, heading, gyroscope, GPS, accelerometer, leak indicator, etc. |
Voltage and Power | Voltage/Power Consumption: 220V, 4.5KW |
Console | Adopts a splash-proof chassis design |
Control handle | It adopts an industrial-grade control joystick, which can control the basic actions of the equipment and connect to the host via a USB interface. |
Forward-looking sonar (optional) | Multi-beam Sonar M750d Operating Frequency: 750kHz/1.2MHz
Range (Maximum): 120m/40m Range (Minimum): 0.1m Range Resolution: 4mm/2.5mm Angular Resolution: 1°/0.6° Beams (Maximum): 512 Angular Coordinate Resolution: 0.6°/0.4° Depth Rating: 300m |
