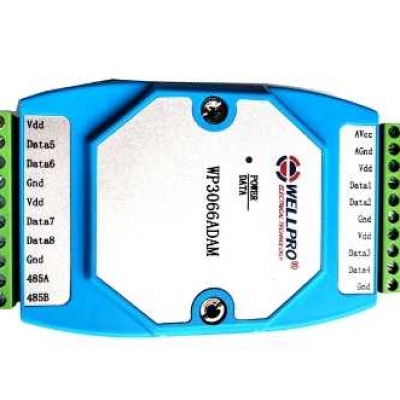

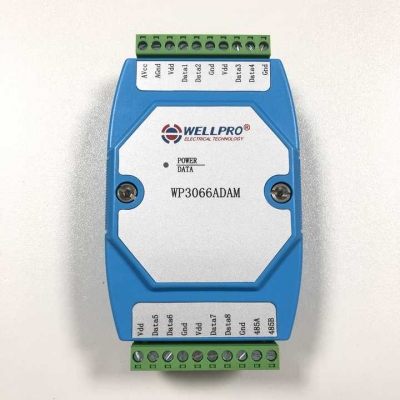

Musktool- WP3066ADAM 8 Channel Wellpro RS485 RTU MODBUS Communications Input Temperature Acquisition Module

Product Description

· 8 - channel temperature sensor (DS18B20) input.

· Adopts the RS485 MODBUS RTU communication standard and can be networked with configuration software, PLCs, and industrial touch panels.

· Communication status LED.

· The communication circuit is designed for lightning protection and anti - interference.

· Can be used for signal acquisition and control of industrial field devices.

· Three - year quality guarantee under normal use.

Specifications

Parameter	Specification
Temperature input	8ch (DS18B20 temperature sensors)
Temperature measurement range	-55 - 125 °C
Temperature measurement accuracy	± 0.5 °C
Temperature resolution	0.1 °C
Effective connection distance	≤ 25 meters (ordinary cable)
Operating temperature	-20 - 70 °C
External power supply	DC 9V - 30V/2W
Isolation protection	1500VDC
Installation method	Standard DIN rail or screws
Dimensions	125 × 73 × 35 mm

Interface Definitions

Interface	Description
AVcc	Positive terminal input of the external PSU
AGnd	Negative terminal input of the external PSU
Vdd	+ 5V, connect to the Vdd pin of DS18B20
Data 1	Connect to the DQ pin of the 1st - channel DS18B20
Data 2	Connect to the DQ pin of the 2nd - channel DS18B20
Gnd	0V, connect to the Gnd pin of DS18B20
Vdd	+ 5V, connect to the Vdd pin of DS18B20
Data 3	Connect to the DQ pin of the 3rd - channel DS18B20
Data 4	Connect to the DQ pin of the 4th - channel DS18B20
Gnd	0V, connect to the Gnd pin of DS18B20
Vdd	+ 5V, connect to the Vdd pin of DS18B20
Data 5	Connect to the DQ pin of the 5th - channel DS18B20
Data 6	Connect to the DQ pin of the 6th - channel DS18B20
Gnd	0V, connect to the Gnd pin of DS18B20
Vdd	+ 5V, connect to the Vdd pin of DS18B20
Data 7	Connect to the DQ pin of the 7th - channel DS18B20
Data 8	Connect to the DQ pin of the 8th - channel DS18B20
Gnd	0V, connect to the Gnd pin of DS18B20
485A	RS485 signal A +
485B	RS485 signal B -
