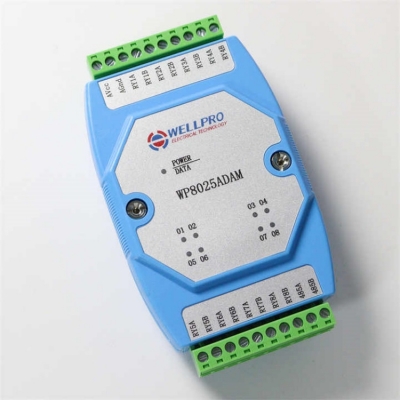

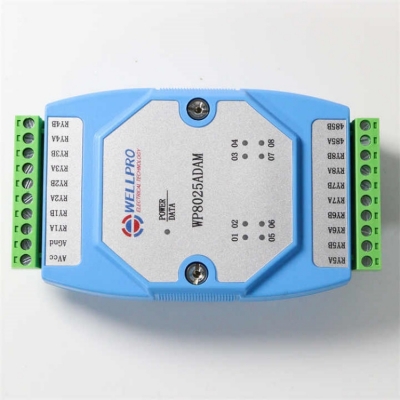

Musktool- WP8025ADAM 8-Channel Wellpro RS485 MODBUS RTU Communications relay SPST output module isolated

Musktool- WP8025ADAM 8-Channel Wellpro RS485 MODBUS RTU Communications relay SPST output module isolated

Musktool- WP8025ADAM 8-Channel Wellpro RS485 MODBUS RTU Communications relay SPST output module isolated

Musktool- WP8025ADAM 8-Channel Wellpro RS485 MODBUS RTU Communications relay SPST output module isolated

Musktool- WP8025ADAM 8-Channel Wellpro RS485 MODBUS RTU Communications relay SPST output module isolated

Musktool- WP8025ADAM 8-Channel Wellpro RS485 MODBUS RTU Communications relay SPST output module isolated

Musktool- WP8025ADAM 8-Channel Wellpro RS485 MODBUS RTU Communications relay SPST output module isolated

2025-02-07 12:59:31

WP8025ADAM 8-Channel Wellpro RS485 MODBUS RTU Communications

Main Features :
Serial No. : Zoe674

Specification

Contact Us For Quotation

Email: 464560351@qq.com

Whatsapp&Wechat:+8618620373879

Musktool- WP8025ADAM 8-Channel Wellpro RS485 MODBUS RTU Communications relay SPST output module isolated

Product Description

8 - channel relay output (SPST).

Adopts the RS485 MODBUS RTU communication standard. It can be networked with configuration software, PLCs, and industrial touch panels.

LEDs for communication, input, and output status indication.

The communication circuit is designed for lightning protection and anti - interference.

It can be used for signal acquisition and control of industrial field devices.

Three - year quality guarantee under normal use.

Specifications

Relay output: 8ch (SPST)

Relay contact capacity: 2A/250VAC, 2A/30VDC

Operating temperature: -20 - 70 °C

External power supply: DC 9V - 30V/2W

Isolation protection: 1500VDC

Installation method: Standard DIN rail or screws

Dimensions: 125 × 73 × 35 mm
